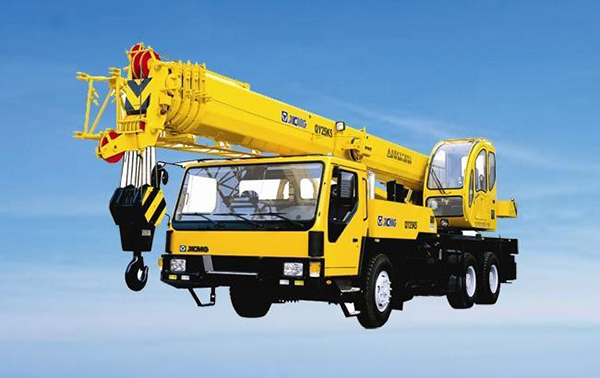

qy25k5
Main Technical Specifications
Technical Data for Lifting Operation
| Classificatory | Item | Unit | Parameter | |
| Outline dimension | Overall length | mm | 12000 | |
| Overall width | mm | 2500 | ||
| Overall height | mm | 3380 | ||
| Mass | Total mass in travel state | kg | 31000 | |
| Axle load | Front Axle | kg | 6440 | |
| Rear Axle | kg | 24600 | ||
| Travel performance | Travel speed | Max. travel speed | km/h | 75 |
| Turning diameter | Min. turning diameter | m | 22 | |
| Min. ground clearance | mm | 260 | ||
| Approach angle | (°) | 16 | ||
| Departure angle | (°) | 13 | ||
| Braking distance (at speed of 30km/h) | m | |||
| 10 | ||||
| Max. grade-ability | ％ | 30 | ||
| Fuel consumption for 100km | L | 37 | ||
| Power | Engine rated output | kW/(r/min.) | 206/2200 | |
| Engine rated torque | N.m/(r/min.) | 1112/1400 | ||
| Engine rated speed | rpm. | 2200 | ||
| Classificatory | Item | Unit | Parameter | ||
| Lifting performance | Max. total rated lifting capacity | t | 25 | ||
| Min. rated working radius | m | 3 | |||
| Turning radius at turntable tail | m | 3.065 | |||
| Max. load moment | Base boom | kN.m | 961 | ||
| Fully extended boom | kN.m | 450 | |||
| Fully-extend boom+Jib | kN.m | 436 | |||
| Outrigger span | Longitudinal | m | 4.8 | ||
| Lateral | m | 6 | |||
| Lifting height | Base boom | m | 10.2 | ||
| Fully extended boom | m | 38.6 | |||
| Fully extended boom + Jib | m | 47.6 | |||
| Working speed | Boom elevating time | Boom raising | S | 75 | |
| Boom telescoping time | Boom full extension | S | 150 | ||
| Max. swing speed | r/min | 2.5 | |||
| Outrigger telescoping time | Outrigger beam extending/retracting synchronously | S | 35/30 | ||
| Outrigger jack extending/retracting synchronously | S | 40/35 | |||
| Hoist speed | Main winch | Full load | m/min | 75 | |
| (single line) | No load | m/min | 125 | ||
| Auxiliary winch | Full load | m/min | 75 | ||
| No load | m/min | 125 | |||
