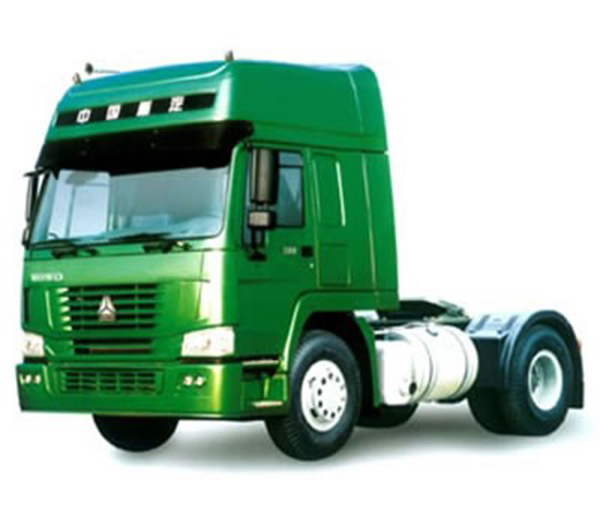

SINOTRUK HOWO 4x2 tractor truck

•
•
•

SINOTRUK HOWO 4x2 tractor truck
SINOTRUK HOWO 4x2 tractor truck
Model: ZZ4187N3511W，EUROII
Drive type: 4x2
Cab: HW76 flat roof cab with one sleeper bed,with A/C
Engine: Weichai brand  WD615.69
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 336hp /2200 rpm
Max. torque: 1350 NM /1300-1600rpm
Transmission (gear box): HW15710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF7 drum type, 7tons
Rear axle: HW1667 single reduction
Ratio=3.73
Fuel tank: 400L
Tire: 12.00R20, 10+1spare

Kerb. mass: 9180kg
Total mass: 25000kg
Max.towed capacity: 39200kg
Max. speed (km/h): 102
Max. gradeability(%): 27
Approach/departure angle: 16/42 degree

Overall dimension(mm): 6110×2496×2958
Wheel base (mm): 3500
Front/rear overhang (mm): 1500/1110
Front /rearwheel track(mm): 2022/1850
Front /rear turning circle(mm): 2220/1820
Minimum ground clearance(mm): 267
Saddle joint surface height(empty/full): 1330/1297
Saddle size: 2’’(50#)
