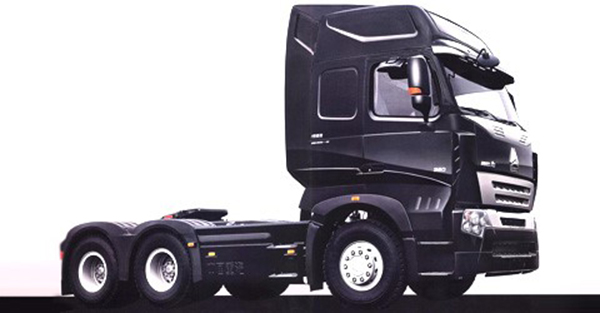

SINOTRUK HOWOA7 6x4 tractor truck
Drive type: 6x4
Cab: A7-G cab, high floor& high roof with two sleeper beds, with A/C
Engine: SINOTRUK D10.34
Type: 6-cylinder in-line with water cooling, supercharging & inter-cooling
Displacement: 9.726L
Engine output: 340hp /1900 rpm
Max. torque: 1490 NM /1200-1500rpm
Transmission (gear box): HW15710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF7 drum type, 7tons
Rear axle: HW1697 single reduction
Ratio=3.73
Fuel tank: 400L (600L is optional)
Tire: 12.00R20, 10+1spare

Kerb. mass: 8800kg
Total mass: 25000kg
Max.towed capacity: 40000kg
Max. speed (km/h): 101
Max. gradeability(%): 24.6
Approach/departure angle: 15/46 degree

Overall dimension(mm): 6985×2496×3850
Wheel base (mm): 3200+1400
Front/rear overhang (mm): 1540/870
Front /rear wheel track(mm): 2022/1850
Saddle joint surface height(empty/full): 1390/1326
Front /rear turning circle(mm): 2460/2250
Minimum ground clearance(mm): 268
Saddle size: 2’’( 3.5’’ is optional)
