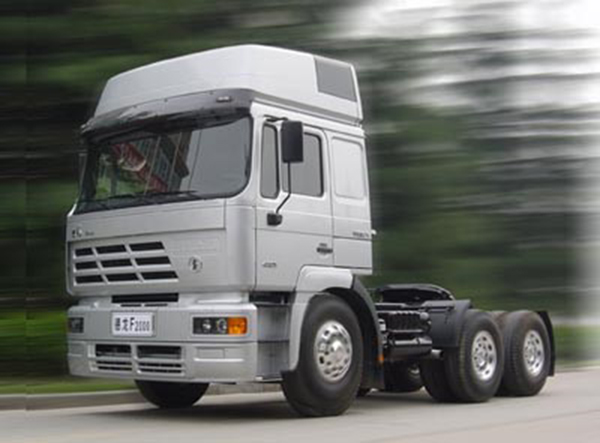

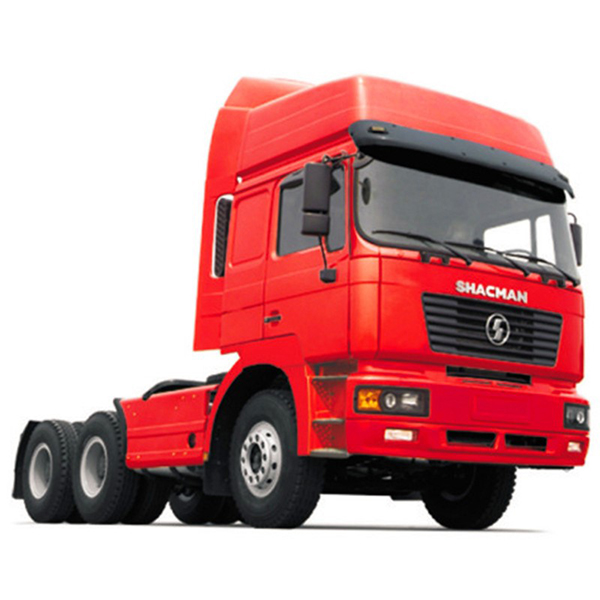

Delong 6x4 tractor truck
| Model | SX4254NX294C | |||
| Overall Dimension（L*W*H） (mm) | 6600x2490x3750 | |||
| Wheel base (mm) | 2925+1350 | |||
| Curb weight （kg） | 9000 | |||
| Gross towing trailer weight (kg) | 39800 | |||
| Max Speed：（km/h） | 92 | |||
| Engine |
Model | Diesel,CUMMINS Engine. | ||
| Type | water-cooled,4 strokes,6 cylinders in line,turbocharged | |||
| Horse Power | 340hp,380hp,420hp,460hp,460hp Max | |||
| Injection type | Mechanical/Electrical | |||
| Fuel tanker capacity （L） | 400L square aluminum alloy fuel tank |
|||
| Clutch | Model | 430, Single dry frictional disc，Hydraulic boosting | ||
| Gearbox | Model | FULLER Technology, Manual Transmission, | ||
| Brake system | Service brake | double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Potential springs pressing on middle and rear wheels | |||
| Steering system | Model | ZF technology | ||
| Suspension System | Rear Suspension | Non-free standing stabilization Leaf spring | ||
| Frame | STEYR Technology variable width, variable sections | |||
| Front axle (Steyr Tech) | Double-shoe pneumatic brake, non-driving steering axle | |||
| Middle and Rear axle |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor |
|||
| Tire | 315/80R22.5,12.00R22.5, 12.00R20,12.00-20 | |||
| Electrical system | Battery | 2X12V/135Ah | ||
| Generator | 28V-35A | |||
| Starter | 5.4Kw/24V | |||
| Cab |
Long cab with sleeper （High roof with two sleeper),Can be tipped forwardly; | |||
| Fifth wheel | 90(3.5'') | |||
