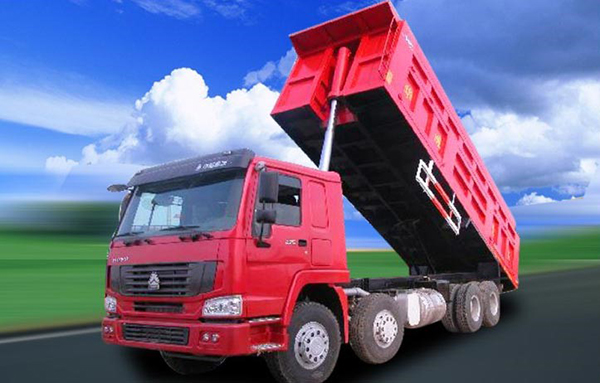

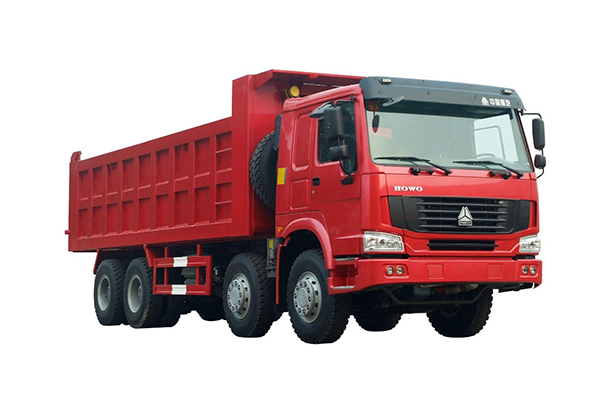

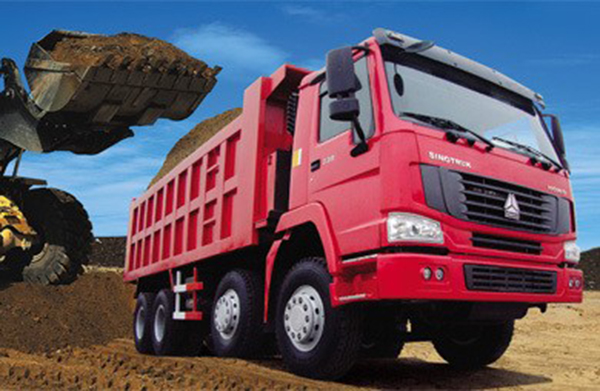

howo 8x4 dump truck
| Model | 8x4 dump truck | ||
| Overall Dimension（L*W*H） (mm) | 9077×2496×3453 | ||
| Wheel base (mm) | 1800+2800+1350 | ||
| Curb weight (kg) | 14350 | ||
| Dump Body (mm) | 6500x2300x1200 | ||
| Gross Weight (kg) | 31000 | ||
| Max Speed：（km/h） | 75 | ||
| Engine |
Model | CNHTC brand WD615.69 | |
| Type | 6-cylinder in-line with water cooling, supercharging & intercooling | ||
| Horse Power | 336hp | ||
| Injection type | Mechanical/Electrical | ||
| Fuel tanker capacity （L） | 300 | ||
| Clutch | Model | D430 Diaphragm type | |
| Gearbox | Model | HW15710, 10 speed transmission | |
| Brake system | Service brake | double circulation air brake system | |
| Assistant brake | Engine exhaust brake | ||
| Park brake | Potential springs pressing on middle and rear wheels | ||
| Steering system | Model | ZF8098 | |
| Frame | STEYR Technology variable width, variable sections | ||
| Front axle | HF9 drum type, 9tons | ||
| Middle and Rear axle | HC16 double reduction | ||
| Tire | 12.00R20, 10+1spare | ||
| Cab | HW76 flat roof cab with one sleeper bed, with A/C | ||
| Lifting type | reinforced “T” type (front lifting is optional) | ||
| Thickness of dump body (mm) | floor 8, side & back 6 | ||
| ** Other technical details will be offered according to CNHTC factory standard. | |||
