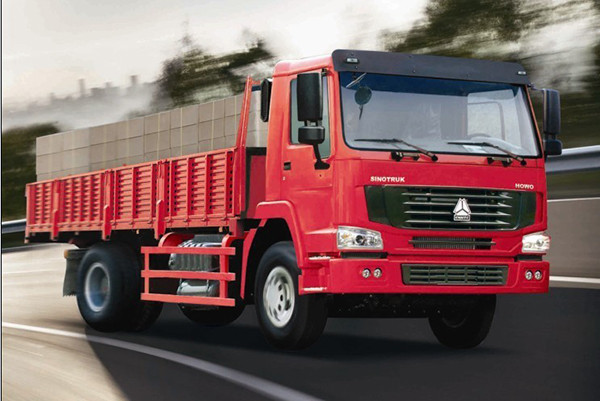

SINOTRUK HOWO 4x2 cargo truck

•
•

SINOTRUK HOWO 4x2 cargo truck
SINOTRUK HOWO 4x2 cargo truck
Drive type: 4x2
Cab: HW70 standard cab without sleeper beds, with A/C
Engine: Weichai brand  WD615.87
Type: 6-cylinder in-line with water cooling, supercharging & intercooling
Displacement: 9.726L
Engine output: 290hp /2200 rpm
Max. torque: 1160 NM /1100-1600rpm

Transmission (gear box): HW15710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF7 drum type, 7tons
Rear axle: HW1667 single reduction axle
Ratio=3.73
Fuel tank: 400L
Tire: 12.00R20, 6

Kerb. mass: 7860kg
Total mass: 16000kg
Rated payload: 8010kg
Max. speed (km/h): 102
Max. gradeability(%): >50
Approach/departure angle: 16/23 degree
Overall dimension(mm): 8377×2496×3048
Wheel base (mm): 4600
Front/rear overhang (mm): 1500/2277
Front /rear wheel track(mm): 2022/1850
Minimum ground clearance(mm): 267
Cargo body dimension(mm): 5550x2326x600
Other technical details according to CNHTC factory standard
