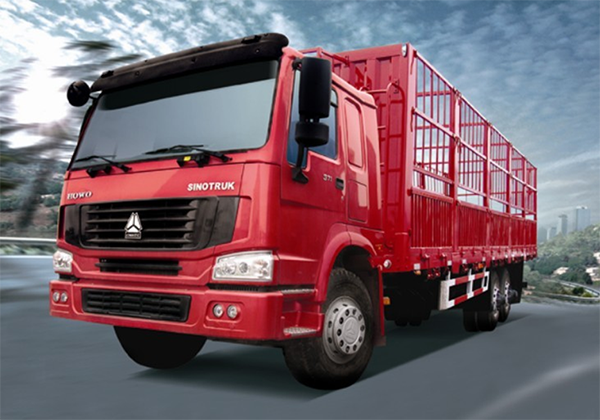

cargo truck 6x4
| Model | 6x4 tractor truck | ||
| Overall Dimension（L*W*H） (mm) | 9800×2496×3048 | ||
| Wheel base (mm) | 4300+1400 | ||
| Curb weight (kg) | 11000 | ||
| Cargo body dimension(mm) | 7100x2326x600 | ||
| Gross Weight (kg) | 25,000 | ||
| Max Speed：（km/h） | 102 | ||
| Engine |
Model | Weichai brand WD615.69 | |
| Type | 6-cylinder in-line with water cooling, supercharging & intercooling | ||
| Horse Power | 336hp /2200 rpm | ||
| Injection type | Mechanical/Electrical | ||
| Fuel tanker capacity （L） | 400 | ||
| Clutch | Model | D430 Diaphragm type | |
| Gearbox | Model | HW15710, 10 speed transmission | |
| Brake system | Service brake | double circulation air brake system | |
| Assistant brake | Engine exhaust brake | ||
| Park brake | Potential springs pressing on middle and rear wheels | ||
| Steering system | Model | ZF8098 | |
| Frame | STEYR Technology variable width, variable sections | ||
| Front axle | HF7 drum type, 7tons | ||
| Middle and Rear axle | HW1697 single reduction axle | ||
| Tire | 12.00R20, 10+1spare | ||
| Cab | HW76 flat roof cab with one sleeper bed, with A/C | ||
| Max. gradeability(%) | >50 | ||
| Approach/departure angle | 15/16 degree | ||
| * * Other technical details will be offered according to CNHTC factory standard. | |||
